Data

Overview

The first step in the nerblackbox workflow (after the mandatory Preparation) is to choose a dataset. Datasets for NER can differ in many regards:

Dataset Source: Many datasets are publicly available on HuggingFace or in GitHub repositories. You may also have private datasets on your local filesystem or an annotation tool server.
Dataset Type: Some datasets are pretokenized while others come as plain text together with a list of entities and their spans.
Dataset Format: Even for two datasets of the same Dataset Type, the specific formatting of the data may differ.
Dataset Splits: Some datasets are divided into train/validation/test subsets, while others only have train/test subsets, or aren't split into subsets at all.
Annotation Scheme: There exist different annotation schemes like IO, BIO, BILOU and variations thereof.

nerblackbox can handle all these different cases automatically. It provides a simple Dataset class which allows to easily set up any dataset and make it readily available for training and evaluation:

set up a dataset

Python

dataset = Dataset(name="<dataset_name>", source="<source>")  # <source> = HF, BI, LF
dataset.set_up()

This creates dataset files in the folder ./store/datasets/<dataset_name>.

The above procedure may---depending on the dataset---include downloading, reformatting, train/validation/test splitting and an analysis of the data. In the following, we will describe the details of this procedure.

Dataset Sources

Datasets can be taken directly from HuggingFace (HF), the pool of Built-in (BI) datasets, or the Local Filesystem (LF). Integration of data from Annotation Tool (AT) servers is also possible.

HuggingFace (HF)

To employ a dataset from HuggingFace, specify "HF" as the source in addition to the name of the dataset:

set up a dataset from HuggingFace (HF)

Python

dataset = Dataset(name="conll2003", source="HF")
dataset.set_up()

Dataset subsets, if existent, can also be chosen. For more details, we refer to the Python API documentation.

Built-in (BI)

The following datasets are built-in:

Name	Full Name	Language	Open Source	Annotation Scheme	Sample Type	#Samples (Train, Val, Test)	Required Files	Source
swedish_ner_corpus	Swedish NER Corpus	Swedish	Yes	IO	Sentence	(4819, 2066, 2453)	---	Description+Data
sic	SIC	Swedish	Yes	BIO	Sentence	(436, 188, 268)	---	Description+Data
suc	SUC 3.0	Swedish	No	BIO	Sentence	(71046, 1546, 1568)	`suc-*.conll`	Description
swe_nerc	Swe-NERC	Swedish	Yes	BIO	Sentence	(6841, 878, 891)	---	Description; Data

To employ a built-in dataset, specify "BI" as the source in addition to the name of the dataset:

set up a dataset that is Built-in (BI)

Python

dataset = Dataset(name="swe_nerc", source="BI")
dataset.set_up()

Note that for datasets which are not open source, the Required Files need to be provided manually, see Local Filesystem (LF).

Local Filesystem (LF)

Data from the Local Filesystem needs to be stored either as .jsonl or .csv, depending on the Dataset Type. Make sure that the correct Dataset Format is followed. You can either provide a single file or three separate files for the train/val/test Dataset Splits. A single file dataset will automatically be split as part of the setup (reformatting step).

The following name conventions need to be obeyed.

Dataset Type	Dataset Splits	File Name
Standard	No	`<local_dataset>.jsonl`
Standard	Yes	`train.jsonl`, `val.jsonl`, `test.jsonl`
Pretokenized	No	`<local_dataset>.csv`
Pretokenized	Yes	`train.csv`, `val.csv`, `test.csv`

To include a dataset from your local filesystem, do the following:

Create a folder ./store/datasets/<local_dataset>
Add one or three .jsonl or .csv file(s) to the folder.

To employ the local dataset, specify its name, "LF" as the source and whether it is pretokenized and/or split:

set up a dataset from Local Filesystem (LF)

Python

dataset = Dataset(name="my_dataset", source="LF", pretokenized=False, split=False)
dataset.set_up()

Annotation Tool (AT)

nerblackbox provides tools to seamlessly integrate two popular (open source) annotation tools, LabelStudio and Doccano. Datasets can be downloaded from a server like this:

Download Data from Annotation Tool

Python

annotation_tool = AnnotationTool.from_config(dataset_name="<dataset_name>", config_file=f"<config_file_path>")
annotation_tool.download(project_name="<project_name>")

<project_name> has to correspond to a project name in the annotation tool. <dataset_name> is used within nerblackbox and may be chosen at discretion.

In order for the above to work, a config file (*.ini) with the annotation tool server's access information needs to be provided. They differ slightly for LabelStudio and Doccano, as can be seen in the following examples:

LabelStudio Integration

Config FilePython

# labelstudio.ini
[main]
tool = labelstudio
url = http://localhost:8081
api_key = <ADD_API_KEY_HERE>

annotation_tool = AnnotationTool.from_config(dataset_name="my_dataset", config_file=f"labelstudio.ini")
annotation_tool.download(project_name="my_project")

Doccano Integration

Config FilePython

# doccano.ini
[main]
tool = doccano
url = http://localhost:8082
username = admin
password = password

annotation_tool = AnnotationTool.from_config(dataset_name="my_dataset", config_file=f"doccano.ini")
annotation_tool.download(project_name="my_project")

After the dataset is downloaded, it will consist of a single .json file of the standard Dataset Type. It can be treated just like a dataset from the Local Filesystem (LF). Note, however, that an additional argument file_path needs to be provided, as shown in the following example:

set up dataset from Annotation Tool (AT)

Python

# download
annotation_tool = AnnotationTool.from_config(dataset_name="my_dataset", config_file=f"labelstudio.ini")
annotation_tool.download(project_name="my_project")
file_path = annotation_tool.get_file_path(project_name="my_project")

# set up
dataset = Dataset(name="my_dataset", source="LF", pretokenized=False, split=False, file_path=file_path)
dataset.set_up()

For further details, we refer to the Python API documentation and the example notebooks.

Dataset Types

Annotated data for named entity recognition in its purest form contains raw text together with a list of entities. Each entity is defined by its position in the raw text and the corresponding tag. We call this the standard type.

After the data is read in, the model's tokenizer is used to pretokenize it. At inference time, the model makes predictions on the pretokenized data. Subsequently, these predictions are mapped back to the original text.

Standard & Pretokenized

Often times, especially in the case of public datasets, the data already comes as pretokenized though. We call this the pretokenized type. In the case of pretokenized data at inference time, the information to map the predictions back to the original text is missing. Hence, the last step in the above chart is skipped.

nerblackbox can process datasets in both the standard and pretokenized type. Both are assigned specific formats, which we will discuss next.

Dataset Formats

nerblackbox uses a single, well-defined data format for each Dataset Type. Datasets which are downloaded from the internet (source = HF, BI) are automatically reformatted as part of the setup, if needed.

The standard format, which is commonly used by annotation tools, looks as follows:

Example: standard format (*.jsonl)

{
    "text": "President Barack Obama went to Harvard",
    "tags": [
        {
            "token": "President Barack Obama",
            "tag": "PER",
            "char_start": 0,
            "char_end": 22
        },
        {
            "token": "Harvard",
            "tag": "ORG",
            "char_start": 31,
            "char_end": 38
        }
    ]
}

Note that the above represents a single training sample that constitutes a single line in the jsonl file. The indentations are shown for convenience only.

The pretokenized format, which is commonly used in public datasets, looks as follows:

Example: pretokenized format (*.csv)

PER PER PER O O ORG <tab> President Barack Obama went to Harvard

Note that each row has to contain a single training sample in the format <tags> <tab> <text>, where in <tags> and <text> the tags and tokens are separated by whitespace.

Dataset Splits

nerblackbox always requires a dataset to be split into train/validation/test subsets. If the original dataset does not fulfill this condition, it is automatically split as part of the setup.

By default, a single file dataset is split into 80% training, 10% validation and 10% test subsets. If the original dataset already consists of train/test subsets, 11.1% of the train subset is used for validation (which, assuming that the test subset amounts to 10% of the whole data, leads to the same 80/10/10 split).

The relative sizes of the subsets can be specified as arguments of the set_up() method.

specify size of validation subset

Python

dataset = Dataset(name="swedish_ner_corpus", source="HF")  # contains train/test subsets
dataset.set_up(val_fraction=0.2)                           # use 20% of the train subset for validation

For more details, we refer to the Python API documentation.

Annotation Schemes

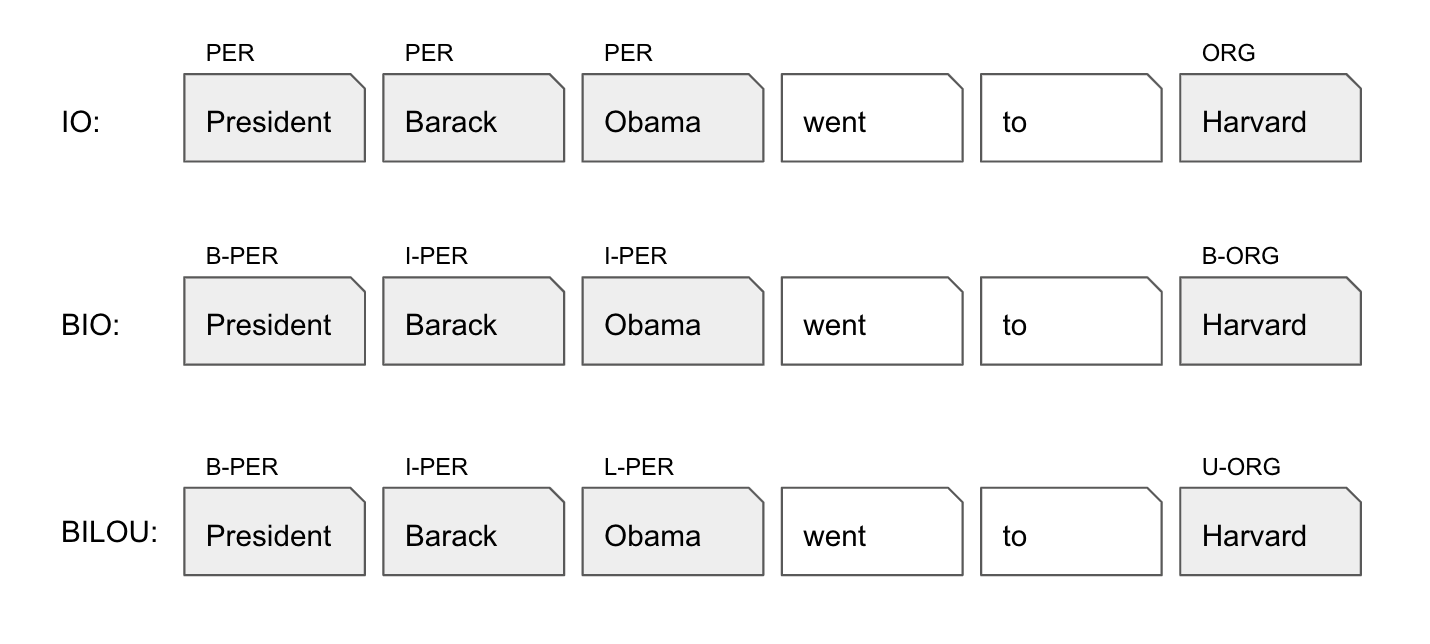

NER datasets come with different annotation schemes. nerblackbox uses the 3 standardized schemes IO, BIO and BILOU:

Annotation Schemes

For the BIO and BILOU schemes, there exist many variations (e.g. IOB1, IOB2 for BIO) and equivalent schemes (e.g. IOBES for BILOU). nerblackbox automatically recognizes a dataset's annotation scheme (e.g. IOB1) and translates it to the corresponding standardized scheme (e.g. BIO) as part of the setup, if needed. Note that the standardized BIO scheme corresponds to the variation IOB2.

nerblackbox allows to switch between the annotation schemes at Training time, via the Parameter annotation_scheme. Note, however, that the information content of the IO scheme is inferior compared to the BIO and BILOU schemes.

Dataset Analysis

After a dataset is set up, some useful features and statistics (e.g. tags, tag distribution) can be found at ./store/datasets/<dataset_name>/analyze_data
