Training

Given a dataset that is properly set up, we can fine-tune a pretrained model for Named Entity Recognition.

Model Sources

nerblackbox works with PyTorch transformer models only. They can either be taken straight from HuggingFace (HF) or the Local Filesystem (LF). In order to employ models from HF, it is sufficient to specify the name of the model (see Basic Training).

Local models need to be stored in a directory ./store/pretrained_models/<my_model> and (at least) include the following files:

  • config.json
  • pytorch_model.bin
  • tokenizer_config.json, tokenizer.json, vocab.json (or vocab.txt)

Note that the name for <my_model> must include the architecture type, e.g. bert.

Basic Training

A specific model can be trained on a specific dataset using specific parameters using the Training class.

Define the Training

The training is defined

  • either dynamically through arguments when a Training instance is created

    define training dynamically
    training = Training("<training_name>", model="<model_name>", dataset="<dataset_name>")

  • or statically by a training configuration file ./store/training_configs/<training_name>.ini.

    define training statically
    training = Training("<training_name>", from_config=True)

Note that the dynamic variant also creates a training configuration, which is subsequently used. In both cases, the specification of the model and the dataset are mandatory and sufficient. Training Parameters may be specified but are optional. The hyperparameters that are used by default are globally applicable settings that should give close-to-optimal results for any use case. In particular, adaptive fine-tuning is employed to ensure that this holds irrespective of the size of the dataset.

Run the Training

The training is run using the following command:

run training
training.run()

See the Python API documentation for further details.

Main Results

When the training is finished, one can get its main results like so:

Main Results (single training)
training.get_result(metric="f1", level="entity", phase="test")

See the Python API documentation for further details.

An overview of all conducted trainings and their main results can be accessed using the Store class:

Main Results (all trainings)
Store.show_trainings()

Example

An English BERT model can be trained on the CoNLL-2003 dataset like this:

Example: Training
training = Training("my_training", model="bert-base-cased", dataset="conll2003")
training.run()
training.get_result(metric="f1", level="entity", phase="test")
# 0.9045

Advanced Training

Parameters

nerblackbox uses a large amount of default (hyper)parameters that can be customized as needed. The concerned parameters just need to be specified when the training is defined, either statically or dynamically.

  • In the static case, a training configuration file may look like this:

    Example: static training configuration file with parameters
    # my_training.ini

[dataset]
dataset_name = swedish_ner_corpus
annotation_scheme = plain
train_fraction = 0.1  # for testing
val_fraction = 1.0
test_fraction = 1.0
train_on_val = False
train_on_test = False

[model]
pretrained_model_name = af-ai-center/bert-base-swedish-uncased

[settings]
checkpoints = True
logging_level = info
multiple_runs = 1
seed = 42

[hparams]
max_epochs = 250
early_stopping = True
monitor = val_loss
min_delta = 0.0
patience = 0
mode = min
lr_warmup_epochs = 2
lr_num_cycles = 4
lr_cooldown_restarts = True
lr_cooldown_epochs = 7

[runA]
batch_size = 16
max_seq_length = 128
lr_max = 2e-5
lr_schedule = constant

  • In the dynamic case, the equivalent example is:

    Example: dynamic training with parameters
    training = Training(
    "my_training",
    model="af-ai-center/bert-base-swedish-uncased",  # model = model_name
    dataset="swedish_ner_corpus",                    # dataset = dataset_name
    annotation_scheme="plain",
    train_fraction=0.1,                              # for testing
    val_fraction=1.0,
    test_fraction=1.0,
    train_on_val=False,
    train_on_test=False,
    checkpoints=True,
    logging_level="info",
    multiple_runs=1,
    seed=42,
    max_epochs=250,
    early_stopping=True,
    monitor="val_loss",
    min_delta=0.0,
    patience=0,
    mode="min",
    lr_warmup_epochs=2,
    lr_num_cycles=4,
    lr_cooldown_restarts=True,
    lr_cooldown_epochs=7,
    batch_size=16,
    max_seq_length=128,
    lr_max=2e-5,
    lr_schedule="constant",
)

The parameters can be divided into 4 parameter groups:

  1. Dataset
  2. Model
  3. Settings
  4. Hyperparameters

In the following, we will go through the different parameters step by step to see what they mean.

1. Dataset

Key Mandatory Default Value Type Values Comment
dataset_name Yes --- str e.g. conll2003 key = dataset can be used instead
annotation_scheme No auto str auto, plain, bio, bilou specify annotation scheme (e.g. BIO). auto means it is inferred from data
train_fraction No 1.0 float 0.0 - 1.0 fraction of train dataset to be used
val_fraction No 1.0 float 0.0 - 1.0 fraction of val dataset to be used
test_fraction No 1.0 float 0.0 - 1.0 fraction of test dataset to be used
train_on_val No False bool True, False whether to train additionally on validation dataset
train_on_test No False bool True, False whether to train additionally on test dataset
Example: static training configuration file with parameters (Dataset)
# my_training.ini
# ..

[dataset]
dataset_name = swedish_ner_corpus
annotation_scheme = plain
train_fraction = 0.1  # for testing
val_fraction = 1.0
test_fraction = 1.0
train_on_val = False
train_on_test = False

2. Model

Key Mandatory Default Value Type Values Comment
pretrained_model_name Yes --- str e.g. af-ai-center/bert-base-swedish-uncased key = model can be used instead
Example: static training configuration file with parameters (Model)
# my_training.ini
# ..

[model]
pretrained_model_name = af-ai-center/bert-base-swedish-uncased

3. Settings

Key Mandatory Default Value Type Values Comment
checkpoints No True bool True, False whether to save model checkpoints
logging_level No info str info, debug choose logging level, debug is more verbose
multiple_runs No 1 int 1+ choose how often each hyperparameter run is executed (to control for statistical uncertainties)
seed No 42 int 1+ for reproducibility. multiple runs get assigned different seeds.
Example: static training configuration file with parameters (Settings)
# my_training.ini
# ..

[settings]
checkpoints = True
logging_level = info
multiple_runs = 1
seed = 42

4. Hyperparameters

Key Mandatory Default Value Type Values Comment
batch_size No 16 int e.g. 16, 32, 64 number of training samples in one batch
max_seq_length No 128 int e.g. 64, 128, 256 maximum sequence length used for model's input data
max_epochs No 250 int 1+ (maximum) amount of training epochs
early_stopping No True bool True, False whether to use early stopping
monitor No val_loss str val_loss, val_acc if early stopping is True: metric to monitor (acc = accuracy)
min_delta No 0.0 float 0.0+ if early stopping is True: minimum amount of improvement (w.r.t. monitored metric) required to continue training
patience No 0 int 0+ if early stopping is True: number of epochs to wait for improvement w.r.t. monitored metric until training is stopped
mode No min str min, max if early stopping is True: whether the optimum for the monitored metric is the minimum (val_loss) or maximum (val_acc) value
lr_warmup_epochs No 2 int 0+ number of epochs to linearly increase the learning rate during the warm-up phase, gets translated to num_warmup_steps
lr_max No 2e-5 float e.g. 2e-5, 3e-5 maximum learning rate (after warm-up) for AdamW optimizer
lr_schedule No constant str constant, linear, cosine, cosine_with_hard_restarts, hybrid Learning Rate Schedule, i.e. how to vary the learning rate (after warm-up). hybrid = constant + linear cool-down.
lr_num_cycles No 4 int 1+ num_cycles for lr_schedule = cosine or lr_schedule = cosine_with_hard_restarts
lr_cooldown_restarts No True bool True, False if early stopping is True: whether to restart normal training if monitored metric improves during cool-down phase
lr_cooldown_epochs No 7 int 0+ if early stopping is True or lr_schedule == hybrid: number of epochs to linearly decrease the learning rate during the cool-down phase
Example: static training configuration file with parameters (Hyperparameters)
# my_training.ini
# ..

[hparams]
max_epochs = 250
early_stopping = True
monitor = val_loss
min_delta = 0.0
patience = 0
mode = min
lr_warmup_epochs = 2
lr_num_cycles = 4
lr_cooldown_restarts = True
lr_cooldown_epochs = 7

[runA]
batch_size = 16
max_seq_length = 128
lr_max = 2e-5
lr_schedule = constant

Presets

In addition to the manual specification of the parameters discussed above, the dynamic training definition allows for the use of several hyperparameter presets. They can be specified using the from_preset argument in Training() like so:

define training dynamically using preset
training = Training("<training_name>", model="<model_name>", dataset="<dataset_name>", from_preset="adaptive")

In the following, we list the different presets together with the Hyperparameters that they entail:

  • from_preset = adaptive

    Adaptive fine-tuning (introduced in this paper) is a method that automatically trains for a near-optimal number of epochs. It is used by default in nerblackbox.

    adaptive fine-tuning preset
    [hparams]
max_epochs = 250
early_stopping = True
monitor = val_loss
min_delta = 0.0
patience = 0
mode = min
lr_warmup_epochs = 2
lr_schedule = constant
lr_cooldown_epochs = 7

  • from_preset = original

    Original fine-tuning uses the hyperparameters from the original BERT paper. The hyperparameters are suitable for large datasets.

    original fine-tuning preset
    [hparams]
max_epochs = 5
early_stopping = False
lr_warmup_epochs = 2
lr_schedule = linear

  • from_preset = stable

    Stable fine-tuning is a method based on this paper. It is suitable for both small and large datasets.

    stable fine-tuning preset
    [hparams]
max_epochs = 20
early_stopping = False
lr_warmup_epochs = 2
lr_schedule = linear

A hyperparameter grid search can easily be conducted as part of a training (currently only using the static definition). The hyperparameters one wants to vary are to be specified in special sections [runA], [runB] etc. in the training configuration file.

Example: Hyperparameter Search

# my_training.ini
# ..

[runA]
batch_size = 16
max_seq_length = 128
lr_max = 2e-5
lr_schedule = constant

[runB]
batch_size = 32
max_seq_length = 64
lr_max = 3e-5
lr_schedule = cosine
This creates 2 hyperparameter runs (runA & runB). Each hyperparameter run is executed multiple_runs times (see Parameters).

Multiple Seeds

The results of a training run depend on the employed random seed, see e.g. this paper for a discussion. One may conduct multiple runs with different seeds that are otherwise identical, in order to

  • get control over the uncertainties (see Detailed Results)

  • get an improved model performance

Multiple runs can easily be specified in the training configuration.

Example: Settings / Multiple Runs
# my_training.ini
# ..

[settings]
multiple_runs = 3
seed = 42

This creates 3 runs with seeds 43, 44 and 45.

Detailed Results

In addition to the Main Results, one may have a look at much more detailed results of a training run using mlflow or tensorboard.

Detailed Results
Store.mlflow("start")       # + enter http://127.0.0.1:5000 in your browser
Store.tensorboard("start")  # + enter http://127.0.0.1:6006 in your browser

nerblackbox mlflow         # + enter http://127.0.0.1:5000 in your browser
nerblackbox tensorboard    # + enter http://127.0.0.1:6006 in your browser

Python: The underlying processes can be stopped using Store.mlflow("stop") and Store.tensorboard("stop").

  • mlflow displays precision, recall and f1 score for every single class, as well the respective micro- and macro-averages over all classes, both on the token and entity level.

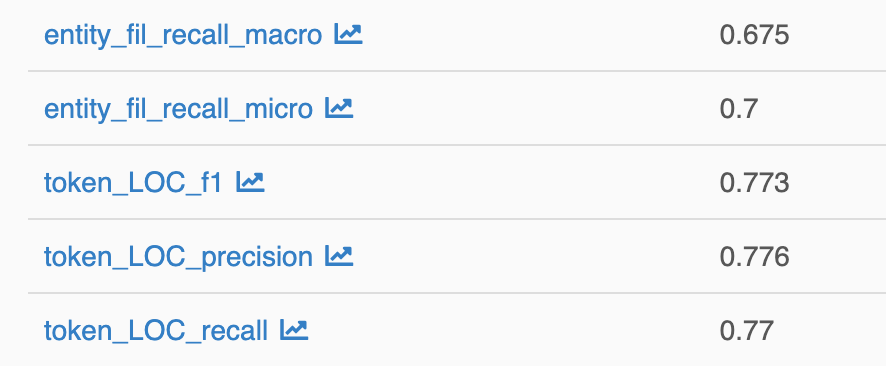

    The following excerpt shows

    • the micro- and macro-averages of the recall on the entity level

    • precision, recall and f1 score for the LOC(ation) class on the token level

    mlflow screenshot detailed results

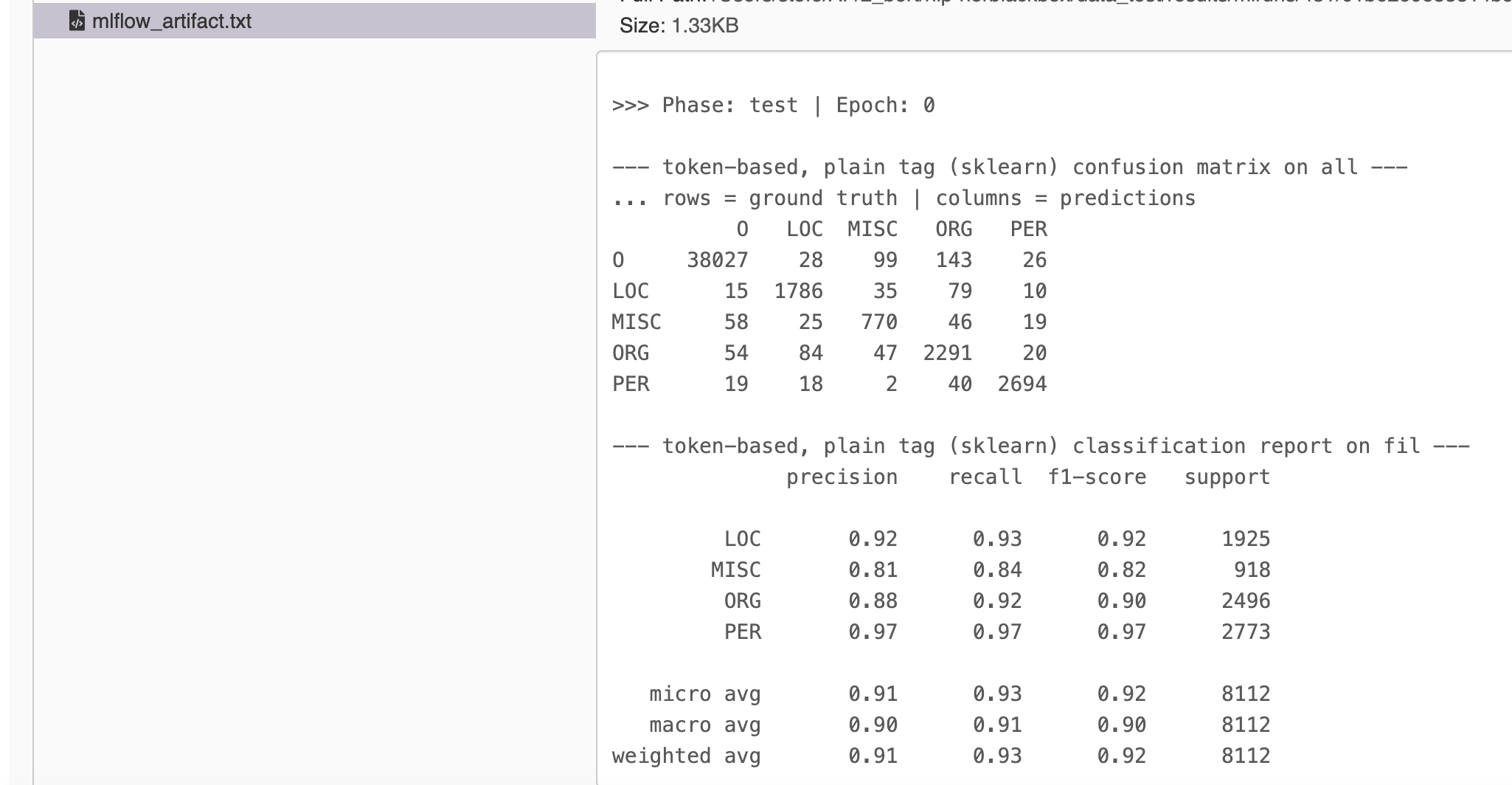

    In addition, one has access to the log file and the confusion matrices (token and entity level) of the model predictions on the test set. A small excerpt is shown below:

    mlflow screenshot confusion matrix

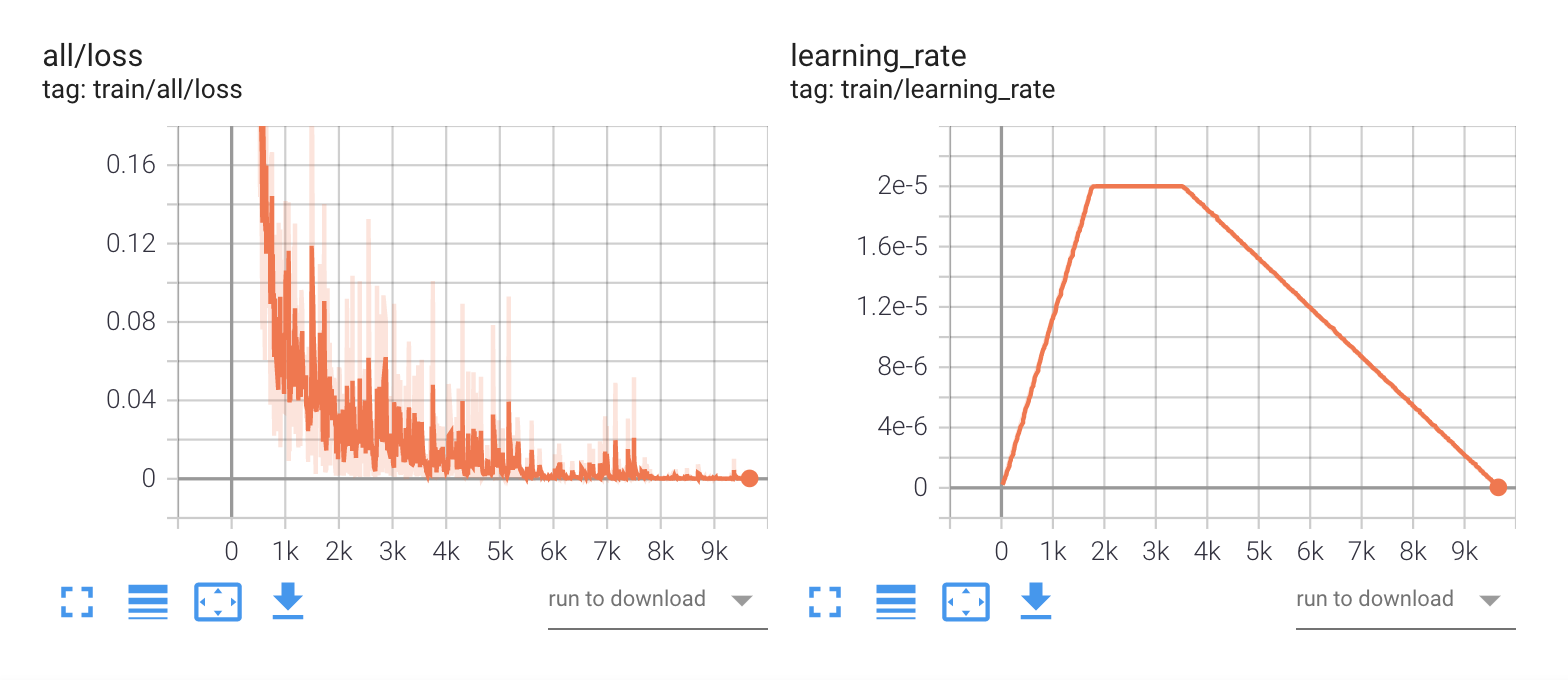

  • tensorboard shows the learning curves of important metrics like the loss and the f1 score.

    A small excerpt is shown below:

    tensorboard screenshot example
